SignalScope XM’s Advanced Tool Set includes access to a suite of basic and advanced analysis tools, plus specialized hardware support, such as auto-loading factory-supplied microphone sensitivities for select USB microphones, updated nominal voltage sensitivities for select audio input devices, and automatic calibration for audio input devices that include built-in sensitivity information.

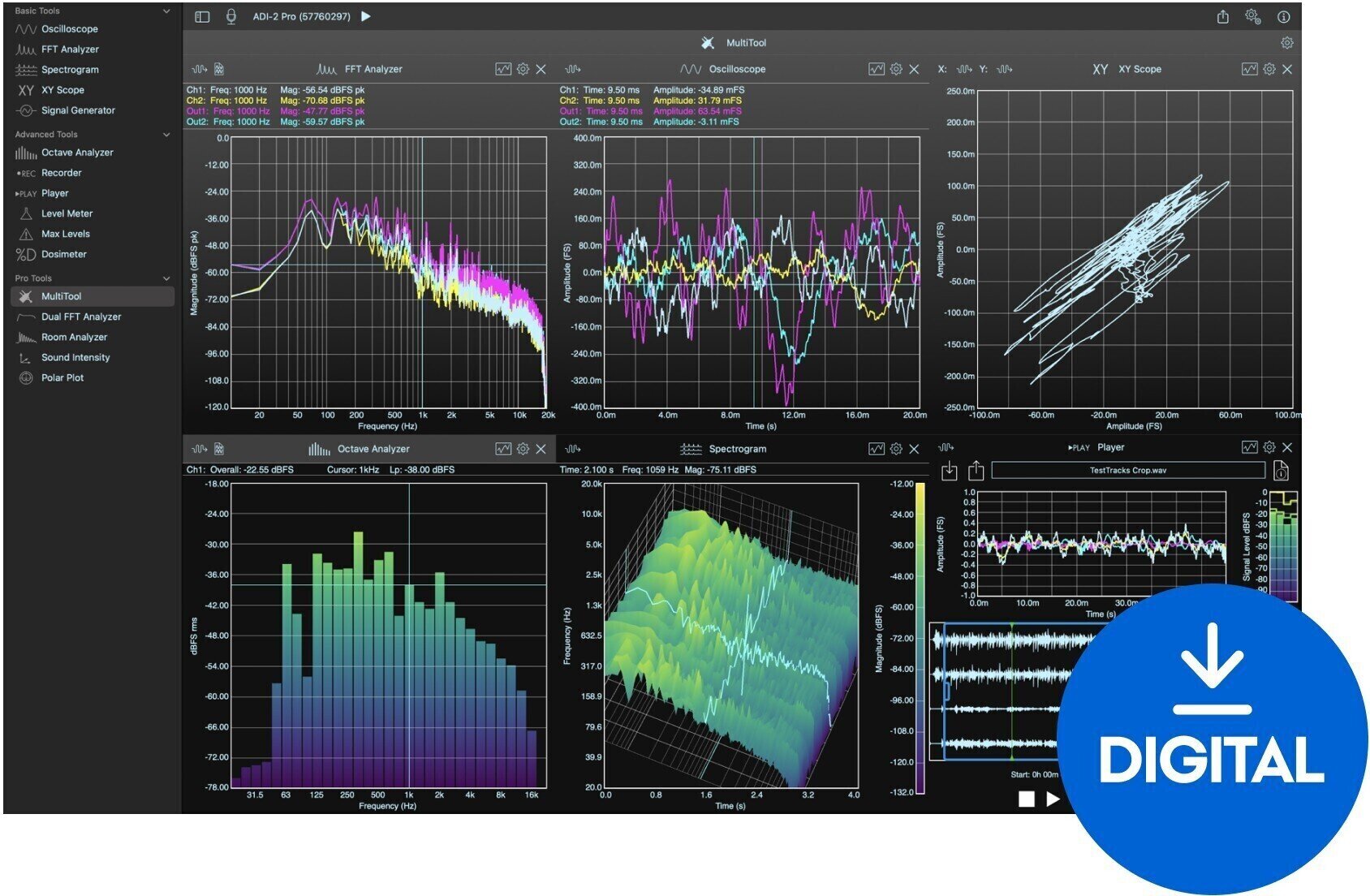

Tools included in this tier:

• Stacks Image 11
• Oscilloscope
• Stacks Image 21
• FFT Analyzer
• Stacks Image 31
• Spectrogram (2D)
• Stacks Image 41
• XY Scope
• Stacks Image 51
• Stereo Signal Generater
• Stacks Image 11
• Octave Analyzer
• Stacks Image 21
• Spectrogram (2D/3D)
• Stacks Image 31
• Level Meter
• Stacks Image 41
• Max Levels
• Stacks Image 51
• Noise Dosimeter
• Stacks Image 61
• Data Recorder
• Stacks Image 71
• File Player

Standard Features:

• Analyze signals coming from any available audio input device connected to your Mac.
• Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
• Assign input channel units and sensitivities for individual USB Audio devices.
• Connect lab-grade microphones and sensors to your Mac with suitable interface hardware for precise measurements.
• SignalScope XM offers enhanced support for select hardware from Digiducer, The Modal Shop, Dayton Audio, and miniDSP.
• Manually switch between available audio input and output sources.
• Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
• Manually adjust audio sample rates, even up to 768 kHz, depending on input hardware.
• Save acquired measurement data to CSV, tab-delimited ASCII text, or MAT files.
• Save high-resolution analyzer display images to PDF files.
